Rotator Sample Mounts

ROT-RES2
Schematic drawing

Our rotator sample mounts are designed to be drop-in alternatives to those available from Quantum Design, with the added advantages of full support across the range for sample sizes up to 10 × 10 mm, as well as rear-side electrical pathway routing to reduce the likelihood of damage when contacting or removing samples, eliminated thermocouple contact pads to prevent accidental shorting, and standardised contact pad positioning for both resistivity and ac transport options.

Our van der Pauw rotator sample mounts offer the same benefits to the rotator as our van der Pauw puck overlays offer the standard measurement pucks, while if you perform frequent rotator measurements, you may find our rotator press contact assemblies useful.

Custom Rotator Sample Mounts

As is common across our range, we are delighted to work with customers' requirements to generate and deliver custom designs of our products to meet particular measurement needs. In the case of the horizontal rotator option, this service can be particularly valuable given the small amount of space available for customisation and the wide-ranging demands of measurement.

An example of such a custom design is pictured below. If you're facing a particular measurement challenge you think we might be able to help with, contact us and see what we can do for you today.

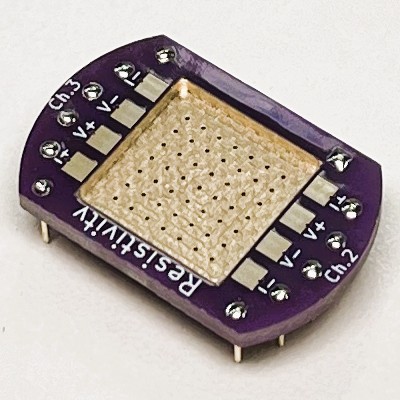

Custom rotator sample mountRotator sample mount featuring embedded measurement circuitry.
Ordering Information
ROT-RESResistivity rotator sample mount£300 for three
ROT-ACTAC transport rotator sample mount£300 for three
ROT-VDP-RESVan der Pauw resistivity rotator sample mount
(for resistivity option)
£300 for three
